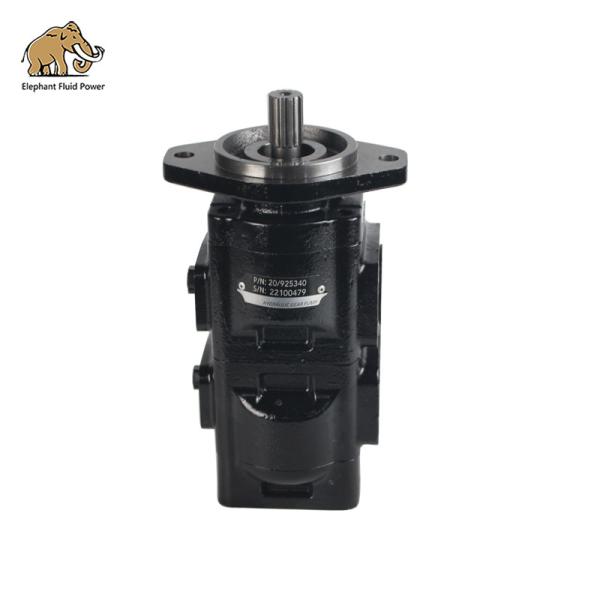

Made In China OEM Quality 20/925340 Parker JCB 3CX Twin Hydraulic Pump 41 26 CC/REV Gear Pump
Elephant Fluid Power Co.,Ltd supply made in China OEM Quality 20/925340 Parker JCB 3CX Twin Hydraulic Pump 41 26 CC/REV Gear Pump,good quality as original parker,good price,fast lead time,12 months quality warranty since sales.
Technical Parameter:
- Rotation: Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
- Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 7/8”-14 UNF threaded
- Maximum working pressure on front pump: 250 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 460 Nm
Replaces the following JCB part numbers
Weight
The JCB Piston pump and Gear pump we supply:
- JCB Gear Pump ( List as following)
- JCB main Pump ( K3V63 K3V112DT, K5V140DTP, HPV118, HPV145, K5V140DTP etc)
- JCB piston Pump ( Rexroth A10VSO, A20V Sereies )
- Spare parts of JCB Main Pump, and Piston Pump ( Piston, Cylinder block, valve plate, charge pump, control valve, seal kit ...)
- JCB Steering (35/410900 35/410700 etc)
| JCB CODE of Gear Pump |
| 332/F9030 20/925580 7029120047 |
| 333/G5390 332/G7135 |
| 332/F9032 |
| 332/F9029 20/925579 20/925339 20/925338 |
| 332/F9031 20/925581 333/G5391 |
| 20/925340 7029120005 |
| 20/925341 |
| 20/925366 220/925586 333/C5234 333/G5392 |
| 20/925337 |
| 20/925578 20/925586 332/F9028 |
| 20/912800 20/903100 20/902900 |
| 20/903200 20/911200 |
| 20/902900 |
| 20/903000 |
| 20/903300 4074 |
| 20/925592 20/925357 |
| 7049520006 332/E6671 |
| 919/75002 |
| 20/925732 7049532007 |
| 20/925588 20/925356 7029530002 |
| 20/925591 20/918300 |
FAQ:
Q:1.What's your main appliion? --Construction machinery
--Industrial vehicle
--Environmental sanitation equipment
--New Energy
--Industrial Appliion.
Q:2.What is the MOQ?
--MOQ:1pcs.
Q:3.Can I Mark My Own Brand On The Pump?
--Yes. Full order Can mark your brand and code.
Q:4.How long is your delivery time?
--Generally it is3-5days if the goods are in stock. or it is 7-15 days .if the goods are not in stock, it is according to
quantity.
Q:5.What payment method is accepted?
--T/T,Western union,Paypal,
Q:6.How to Place your order ?
1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q:7.What kind of inspection you can provide?
Elephant Fluid Power has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales
representative, to guarantee all pumps are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Our Pumps can be shipped to over 70 countries worldwide. If you need any help in choosing the right part or want to make sure the part is the right one for your machine, then our friendly team will be more than happy to help.
