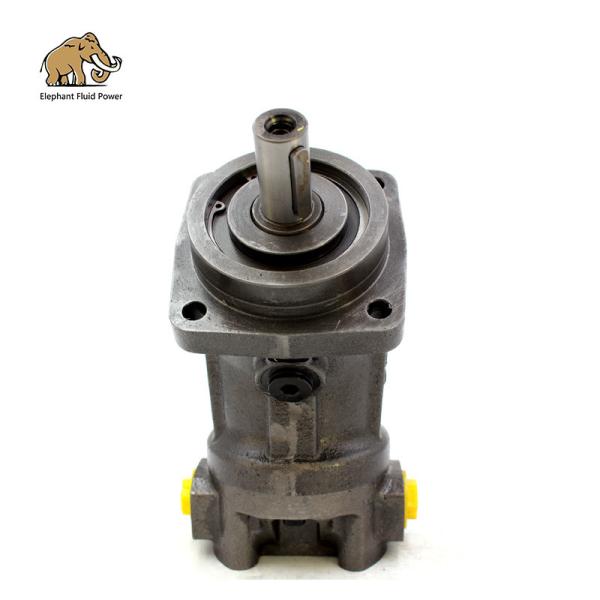

Hydraulic Piston Pump Motor A2FM28-61W-VPB030 Rexroth Pump For Construction Machine
Product detail:
Rexroth piston pumps are widely used in high-pressure, large-flow, high-power systems and occasions where flow needs to be adjusted, such as planers, broaching machines, hydraulic presses, and construction machinery.
1. There are many forms of Rexroth plunger pumps.
2. Rexroth plunger pumps can be divided into Rexroth radial plunger pumps and Rexroth axial plunger pumps according to the arrangement and movement direction of the plungers.
3. Rexroth plunger pumps can be divided into swash plate type (straight shaft type) and inclined shaft type according to different flow distribution methods.
Specifiion:
Model code: A2FM28 / 61W-VPB030-Y
Displacement: 28cm³/ rev
Fluid: standard fluid
Axial piston unit: bent shaft design, fixed
Shaft bearing: standard bearing
Series: 6
Index: 1
Rotation: both directions, from the drive shaft
Observation of the seal: FKM (Fluor-caoutchouc)
Shaft: DIN 6885
Flange: 4 holes
Port plate: Threaded ports A and B are on the side, facing each other. Without valve.
Speed sensor: no speed sensor
Special version: standard version
Standard or special version: Standard version with installation variants. E.g. Corresponding to standard open or closed T-port
Features:
1. Fully interchangeable and original
2. Very competitive price
3. Low noise, high efficiency, high reliability, long life
4. Small size, high power density
5. Excellent oil absorption performance.
6.1 year warranty
7. Used in construction machinery, ships and industrial machinery, etc.
8. For open-loop swash plate axial piston pump.
Advantage:
| 1 | High parameters: high rated pressure, high speed, high driving power of Rexroth oil pump |
| 2 | High efficiency, volumetric efficiency is about 95%, total efficiency is about 90% |
| 3 | Long life |
| 4 | Convenient variables and many forms |
| 5 | Light weight per unit power |
| 6 | The main parts of the Rexroth plunger pump are under compressive stress, and the material strength performance can be fully utilized |
FAQ:
Q: What is our main appliion?
1. Hydraulic system
2. Agricultural machinery
3. Construction Machinery Ji
4. Car
5. Local distributor
Q: What are the payment terms?
Answer: Full order: 30% as desposit, balance before shipment:
Small order/sample ordre: Full advance payment:
Q: Can I mark my own brand on the pump?
Answer: Yes. The complete order can be marked with your brand and code.
Q: What is our main export market?
A: Europe (41.7%): Italy, Germany, United Kingdom, France, Netherlands, Greece, Spain, Portugal, Switzerland, Finland, Czech Republic, Russia, Poland
Asia (40.5%): China, South Korea, Singapore, India, Turkey, Iran, Vietnam, Saudi Arabia, Syria, Isreal, Lebanon
Q: How long is the guarantee?
Answer: We guarantee 1 year.
